Irrigo

Venue

Bobigny (93)

Tasks

Optimization of acoustic insulation, Solution to vibrations of railway tracks

Owner

BNP Paribas Real Estate, Business Property Development, GA Smart Building

Amount of work

€31,100,000 (excl. VAT)

Architect

Leclerq Associates

Year

Delivered in 2022

Surface

16,000 m²

Certificates

HQE and BREEAM excellence, E+C-

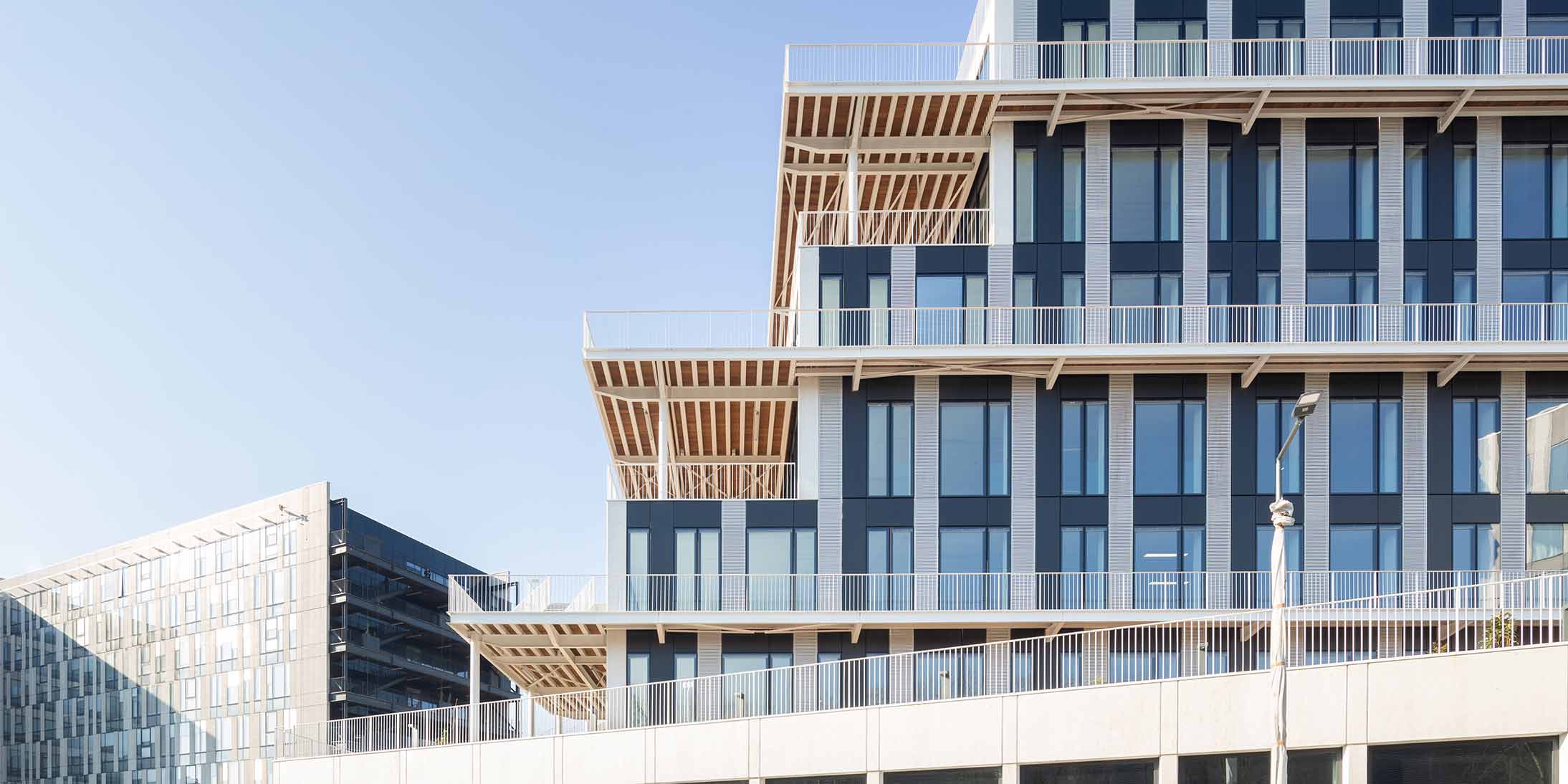

This 16,000 m² office building is one of the emerging buildings in the new ZAC Ecocité – Canal de l'Ourcq in Bobigny. He understands :

  • Offices and open space;
  • A cafeteria and a restaurant;
  • an auditorium;
  • A fitness room;
  • Shopping.

Methodology

The acoustic firm Tisseyre + Associés has developed a joint working methodology with the architect. For 40 years we have been working with digital 3D modeling tools to model the soundscapes of different spaces. These tools and methodologies are essential working aids for close collaboration with architects and urban planners at all stages of the project. By anticipating, optimizing and integrating acoustic solutions within architecture and urban planning, we build coherent sound spaces according to uses and needs.

Tasks

Optimization of acoustic insulation

We have developed the Environmental Acoustic BIM: BIMAE®. Both a tool and a method, the BIMAE® models the soundscapes in the future state of completion by taking into account the noise of the neighboring transport routes and that of human activities throughout the day. Our 4D models make it possible to visualize at the foot, on the facade and around the building the acoustic impact of the various sound sources, from the design phase. This allowed the Irrigo building to optimize the insulation solutions vis-à-vis the neighbors as well as the technical equipment.

Track vibration solutions

The building is located on a railway line of the Ile-de-France RER. We therefore conducted a vibration impact study on the project and proposed low-cost vibration solutions using acoustic expansion joints.
